Aluminium Honeycomb Panels
Explore the Versatility of Aluminium Honeycomb Panels

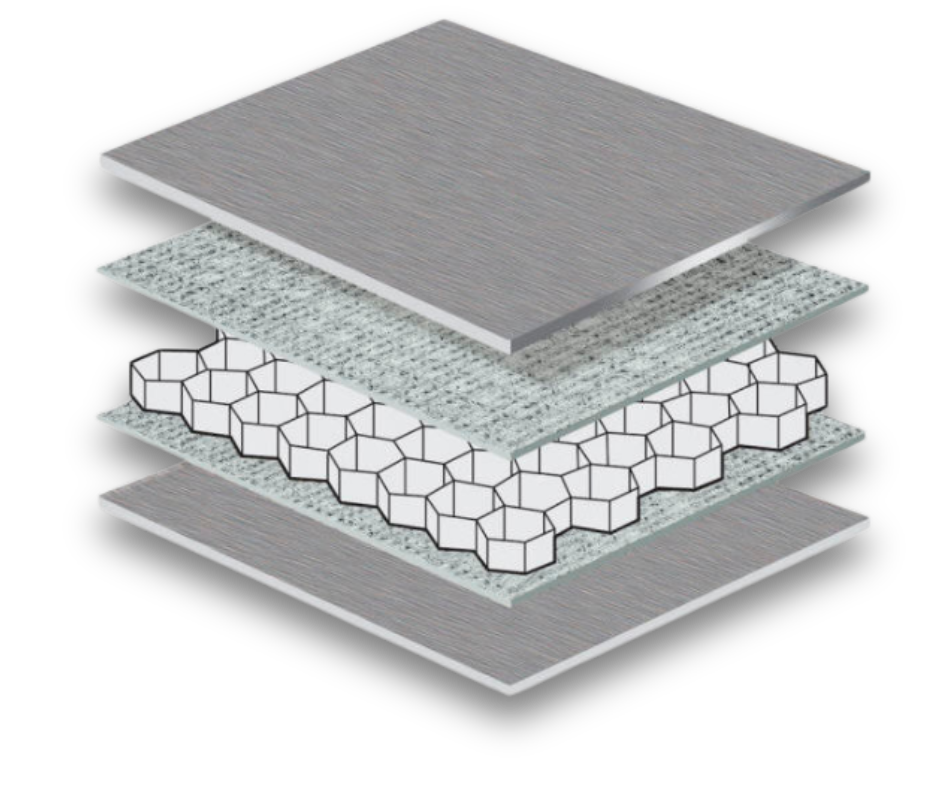

Viva introduces aluminium honeycomb panels featuring a core honeycomb board with a thin aluminium sheet as the outer layer.
Inspired by natural honeycomb structures, this hexagonal core design enhances stability, stiffness, and lightweight properties.
Unlike traditional aluminium composite panels, these panels eliminate the thermoplastic core, adding to their unique characteristics.
Timely Delivery & Composition of Honeycomb Panels
Compared to other materials of the same volume, Viva’s aluminium honeycomb panels boast a distinctive structure and exceptional strength.
Manufactured in Umbergaon, our honeycomb boards meet national and international standards.
With 12 state-of-the-art Korean machines, we ensure innovation and superior panel quality.
Application Areas
Viva’s honeycomb sheets are used in:
Ceilings Facades Metro Coaches Railway Stations Airport
Ideal for both interior and exterior applications.
Why Choose Honeycomb Aluminium Panels?
Viva’s honeycomb aluminium panels provide superior strength, resilience, and an aesthetically pleasing finish.
Key advantages include:
☑️ Self-cleaning surfaces with extensive shade options
☑️ 15-year warranty
☑️ Excellent thermal and sound insulation
☑️ Affordable yet durable metal composite panels
The trusted choice for high-quality aluminium composite panels, ACP panels, and honeycomb aluminium panels.
Alloy Top & Bottom Aluminium Sheet
Elasticity Modulus N/mm²
Tensile Strength N/mm²
Proof Stress N/mm²
Elongation A50
Coating
Top Skin
Bottom Skin
Core Alloy
Compressive Strength N/mm²
Density Kg/m³
AA3003/AA3105/ AA5005
70 000
Min. 115
Min. 70
Min 2%
PVDF/FEVE
0.7mm/ 0.50 mm
0.5 mm
AA3003 / AA5005 / AA 3105
0.67
35
Benefits of Aluminium Honeycomb Panels
FIRE RESISTANT
- Non-combustible and non-melting
- Fire rating: FR Grade A2+
- Hexagonal core structure prevents rapid fire spread
100% Recyclable:
- Aluminium alloy composition allows complete recycling
Lightweight
- Hollow core with hexagonal structure reduces overall weight
- Ideal for aerospace, metro coaches, and theatres
Ease of Installation
- Lightweight panels can be easily installed using rivets and nuts
High Efficacy
- I-beam structural integrity ensures high durability
- Resists high-impact stress
